Current location: Home > Product > Ventilation > Diffuser > Swirl Diffusers >
Air valve CD-SP3S
Release time:2020-04-16 14:14
CD-SP3S

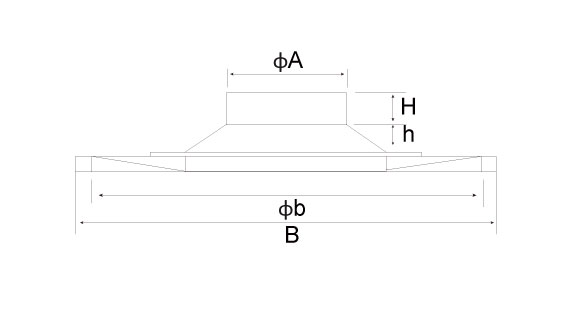

Type A(mm) B(mm) b(mm) H(mm) h(mm)
CD-SP3S150 150 595 515 80 75
CD-SP3S175
175 595 515 80 75
CD-SP3S200 200 595 515 80 75
CD-SP3S250 250 595 515 80 75
CD-SP3S300 300 595 515 80 75
CD-SP3S350 350 595 515 80 75

Air valve made of punched steel with adjustable cone Mounting clips for easy mounting in plenums, Square steel air valves for air discharge, consisting of a square valve body with round spares and a central cone with galvanized steel screw spindle and lock nut.
The flow setting is done by turning the central cone, which can be fixed after setting.
air-conditioning diffusers for drop-in suspended ceilings found in offices, hotels, shopping centres, banks and residential sectors.
