Current location: Home > Product > Condensate Mangemet > Recovery Machine >
Arl & Ce Certification Approved Recovery Machine
Release time:2020-03-05 16:04

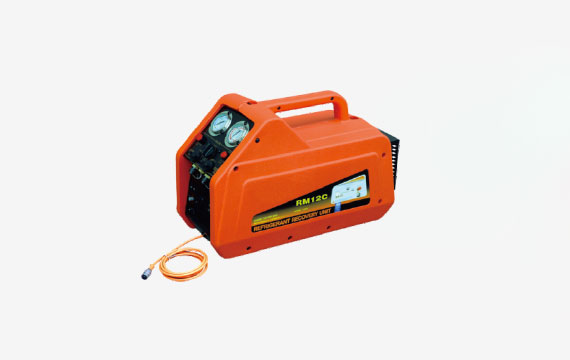

Recovery machine

RM12A



RM12C



Technical Data
Refrigerants
Category Ⅲ: R12, R134a, R401c, R406A, R500
Category Ⅳ: R22, R401A, R401B, R402B, R407C,R407D, R408A, R409A, R411A, R411B, R412A, R502, R509
Category Ⅴ: R402A, R404A, R407A, R407B, R410A, R507
Power Supply 220v/50~60Hz 220v/50~60Hz 220v/50~60Hz
Motor 1/2HP
Motor Speed 1450rpm@50Hz 1750rpm@60Hz
Maximal
Current
Draw
4A@220v 8A@100v/110v
Compressor Oil-less ,Air-cooled , Piston style
Automatic safety
Shut-off
38.5 bar/3850kPa(558psi)
Recovery Rate

Vapor
Liquid
Push/pull
CategoryⅢ
0.23kg/min
1.57kg/min
4.64kg/min
CategoryⅣ
0.25kg/min
1.81kg/min
5.57kg/min
CategoryⅤ
0.26kg/min
1.85kg/min
6.22kg/min
Operating
Temperature
0℃~40℃
Dimensions
(VRR12A)
500mm x 220mm x 340mm
Weight
(VRR12A)
16kg

Economical recovery with 1/2HP, oil-less compressor.
Suitable for all commonly used refrigerants including R410A.
ARI&CE certification approved.
80% overfilling protection.
The unit will automatically stop when the weight of recovered refrigerant reaches 80% capacity of the tank.
Low pressure protection
The unit will automatically stop once the recover is complete,which
reduces the need to monitor the whole process.

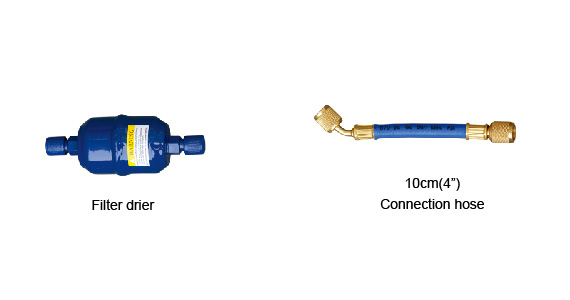

Oil separator device
Purification and recycling of the refrigerants.
