Condensate Drainage Pump Mute Box
Release time:2020-05-25 10:07
Mute Box


Technical Data
Power supply: 100-240V AC 50/60Hz Discharge tube: 6mmID
Max.flow: 22L/h @ 0 head Class: II appliance
Sound level: <19dB(A) @ 1m Rated: continuous
Tank capacity: 40ml IP Protection: IPX5
Max.recommended head: 20m Thermal protection: √
Max.unit output: 28kw/95550Btu/h Fully potted: √

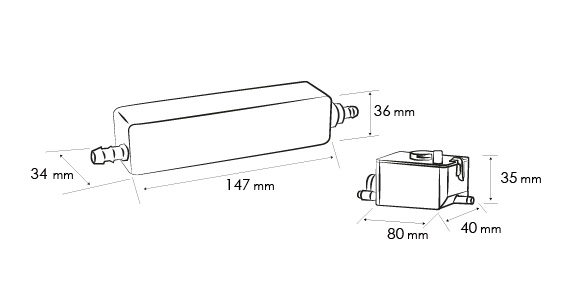

Safety switch: 3A Normally closed LxWxH: 185mmx36mmx34mm
Max.water temperature: 70℃

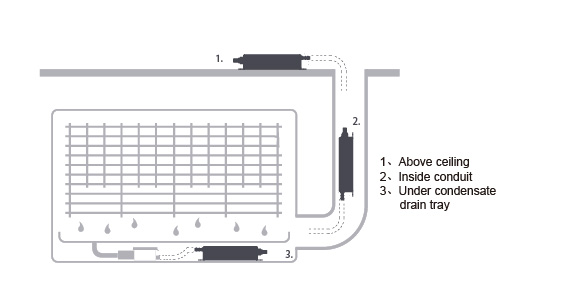

Silent and compact condensate draining pump, perfect for installation on air conditioning units with limited space inside. The small size, the easy installation and the low noise level make it suitable for installations in all places. The pump is designed for power and alarm cable and supplied with tank ventilation pipe,
double-sided tape to fix the pump-tank,
pump-split connection pipe, tank and 6x9 mm pump-tank connecting pipe.
For the flow pipe use the standard 6x9 mm hose (not supplied as standard
equipment).
