Current location: Home > Product > Refrigeration > Manifold >
Manifolds with 2-1/2" gauges
Release time:2020-04-08 09:15
Manifolds with 2-1/2" gauges



Refrigerants Description No hose 1 2 3 4 5
- Basic unit: manifold, gauges, hook and anchors 3094 - - - - -
R-12/R-22/R-502 36" RYB hoses - 3095 3100 3105 3110 3115
R-12/R-22/R-502 48" RYB hoses - 3096 3101 3106 3111 -
R-12/R-22/R-502 60" RYB hoses - 3097 3102 3107 3112 3116
R-12/R-22/R-502 72" RYB hoses - 3098 3103 3108 3113 3117
R-12/R-22/R-502 36" RYB hoses and case - 3099 3104 3109 3114 -
- Basic unit: manifold, gauges, hook and anchors 3118 - - - - -
R-134a/R-404A/R-507 36" RYB hoses - 3119 3124 3129 3134 3139
R-134a/R-404A/R-507 48" RYB hoses - 3120 3125 3130 3135 -
R-134a/R-404A/R-507 60" RYB hoses - 3121 3126 3131 3136 3140
R-134a/R-404A/R-507 72" RYB hoses - 3122 3127 3132 3137 -
R-134a/R-404A/R-507 36" RYB hoses and case - 3123 3128 3133 3138 -
- Basic unit: manifold, gauges, hook and anchors 3141 - - - - -
R-410A 60" RYB hose - - 3142 - 3145 3146
R-410A 60" RYB hoses special* - - 3143 - - -
R-410A HCA 60" hose - - 3144 - - -


Forged brass body with metal valve handles.
Forged body is solid brass for durability. Full porting maximizes capacity.
Metal valve handles are full size for easy operation.
Hose anchors are forged into back of body at 45°.

Pretested. Every manifold is individually tested for reliability before shipping.

Limited Lifetime Warranty
on manifold bar and valves - not gauges. See manifold instructions for details.

Technology. Surge protector and silicone dampened movement helps minimize needle pulsation for easier,more accurate readings.

Sliding double “O”-ring pistons.
Non-rotating design reduces wear. Only 1-1/2 turns give you full flow.
Long-Iife nylon seat is also for vacuum and R134A, R404A, R507, R407C, R4I0A, etc.

Hoses. Most manifolds include color-coded LAX charging hoses.
Easy-to-read 2-1/2" steel case gauges ( ) with 3-2-3% accuracy.

NOTES: Manifolds with some other hose combinations available.
* Special R410A hose - R&B hose is 1/4" x 45° 5/16" end;
Y hose is 1/4" x 45° 1/4" end.
R-410A manifolds with 5/16" hose holder fittings.

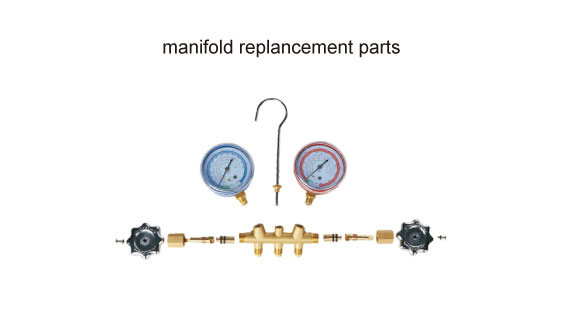

1 Manifold with 68MM gauge boots
2 Manifold with standard fittings
3 Manifold with 68MM oil gauges
4 Manifold with 80MM Dry gauges
5 Manifold with compact ball valve hoses
