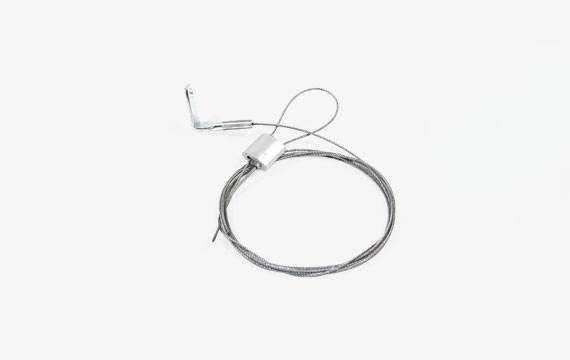

Suspension systems with cable type FC-6

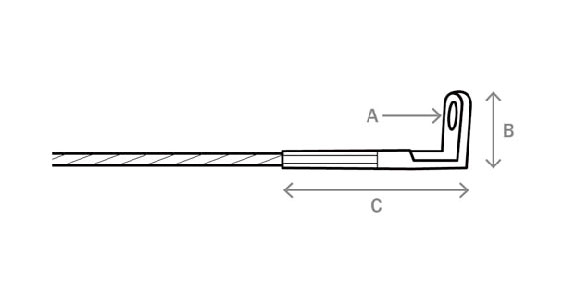

| Type | A [mm] | B [mm] | C [mm] |
| FC-6 | 7.5 | 29 | 38 |
|
Suspension system with thread-ending; delivered with concrete anchors
Application
• For fast suspension in concrete
Specifications
• Absorption of vibration of 77%(cfr thread rods 52%)
• Diameter thread:1.5mm
• Breaking force included safety margin is calculated 1 on 5
• With quick suspension:30kg
•Delivered with concrete anchors
• Packaging of 10 cables with 10 quick locks
Models
• Available in standard lengths of 2m and 5m
• Threads in M6 and M8
• Upon request available in other lengths
Other available products
• Dia 3 mm:max.90 kg available on demand
• Also available with stainless steel cable, on demand
Text for Tender
• Steel galvanized wire cable suspension system with quick locking device for
suspension of HVAC devices, ducts,... The end of the cable is provided with a
loop end for fixing into a ceiling concrete anchor or into a beam clamp.
|
