Metal Exhaust Air Valves Diffuser
Release time:2020-04-17 16:47
EAVC

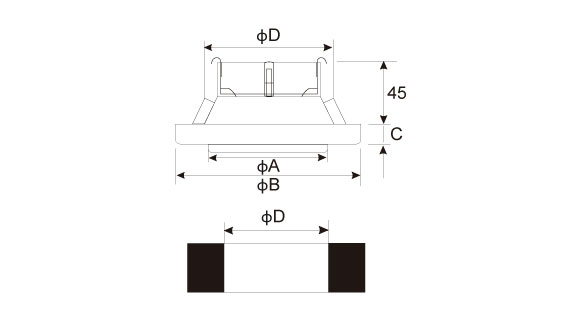

Type φA(mm) φB(mm) C(mm) φD(mm)
EAVC80 62 110 15 78
EAVC100 75 134 15 98
EAVC125 100 160 15 123
EAVC160 140 193 15 158
EAVC200 175 223 15 198

- Steel air exhaust valves with adjustable core
- Application: Wall or ceiling mounted valves EAVC for air supply inside buildings.
- Material: All steel construction
- Colour : RAL 9016, RAL 9010
- Composition:Pressed steel body with adjustable core
- Mounting: Fixing by clips in the mounting frame, can also be used for direct mounting into
  round
duct (with or without mounting frame)




Accessories

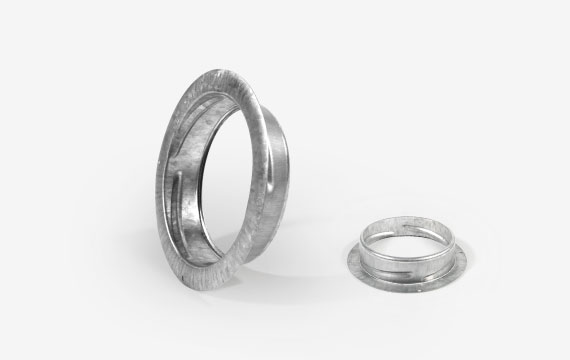

Mounting frames MAVC



Type A(mm) B(mm) H(mm)
MAV MAVC
80 105 79 50 30
100 125 98 50 30
125 150
123
50 30
150 175 148 50 30
160 186 158 50 30
200 226 198 50 30
250 280 248 50 30
