Pipe Clamp with Nut Nscl010
Release time:2020-03-26 14:05

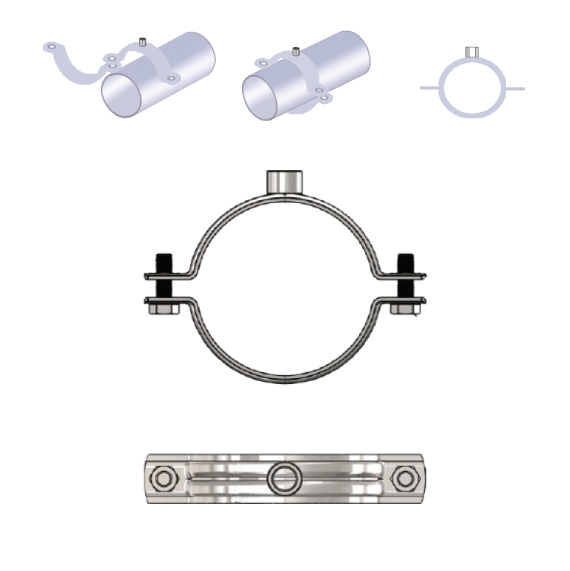

Pipe clamp without rubber - NSCL



Code Size Clamping rang(mm) M N
NSCL010 3/8” 15-19 M5 M8
NSCL015 1/2” 18-22 M5 M8
NSCL017 22-26 22-26 M5 M8
NSCL020 3/4” 26-30 M5 M8
NSCL025 1” 31-36 M5 M8
NSCL032 1 1/4” 38-43 M5 M8
NSCL040 1 1/2” 45-52 M5 M8
NSCL047 53-59 53-59 M5 M8
NSCL050 2” 59-66 M5 M8
NSCL060 66-73 66-72 M6 M10
NSCL065 2 1/2” 74-81 M6 M10
NSCL075 82-89 82-89 M6 M10
NSCL080 3” 90-97 M6 M10
NSCL085 93-100 93-100 M6 M10
NSCL095  101-108 101-108 M6 M10
NSCL100  4” 109-114 M6 M10
NSCL110  115-125 115-125 M6 M10
NSCL120  128-138 128-138 M6 M10
NSCL125 5”  134-144 M6 M10
NSCL140 141-151 141-151 M6 M10
NSCL150 6” 157-167 M6 M10
NSCL180 164-176 164-176 M6 M10
NSCL190 199-211  199-211 M6 M12
NSCL200  8” 218-228 M6 M12

Specifications

· Used for mounting of pipes to the walls (vertical/horizontal), ceilings
and floors
· Easy and safe assembly through Philips combi side screws.
· Side screws are protected against loss during assemble with the help of plastic washers
· Electro galvanized of corrosion resistance(Plastic thickness 8-10 micron)
